Description

The GW9251 is a precision, 24-bit analog-to-digital converter (ADC). With an onboard low-noise amplifier, onboard oscillator, precision second-order 24-bit delta-sigma (ΔΣ) modulator, the GW9251 provides a complete front-end solution for bridge sensor applications including weigh scales, strain gauges, and load cells.

The low-noise amplifier has a gain of 1/2/64/128, supporting a full-scale differential input of ±4.5V. The ΔΣ ADC has 24-bit resolution and is comprised of a second-order modulator and third-order digital filter.

Four data rates are supported: 10, 40, 500, and 1000SPS. The GW9251 can be put in power down mode. The GW9251 is available in an SOP-8 package and is specified from -40°C to +105°C.

Typical Applications

  • Weigh Scales
  • Strain Gauges
  • Pressure Sensors
  • Industrial Process Control
  • Electronic Scales

Basic Application Diagram

Features

Complete front-end for high resolution applications
24 bits without missing code
Internal Amplifier, Gain of 1-to-128
Internal Oscillator
Internal LDOs
Selectable 10, 40, 500, 1000 (SPS) data rates
External Voltage Reference up to 5V for Ratiometric Measurements
Simple, Pin-Driven Control
2-wire serial interface (SPI or I2C) with power down function.

Physical Characteristics

Supply Range: 2.7V to 5.5V
Operating temperature: –40°C to +105°C
Available in 5.0mm x 4.0mm SOP-8 package

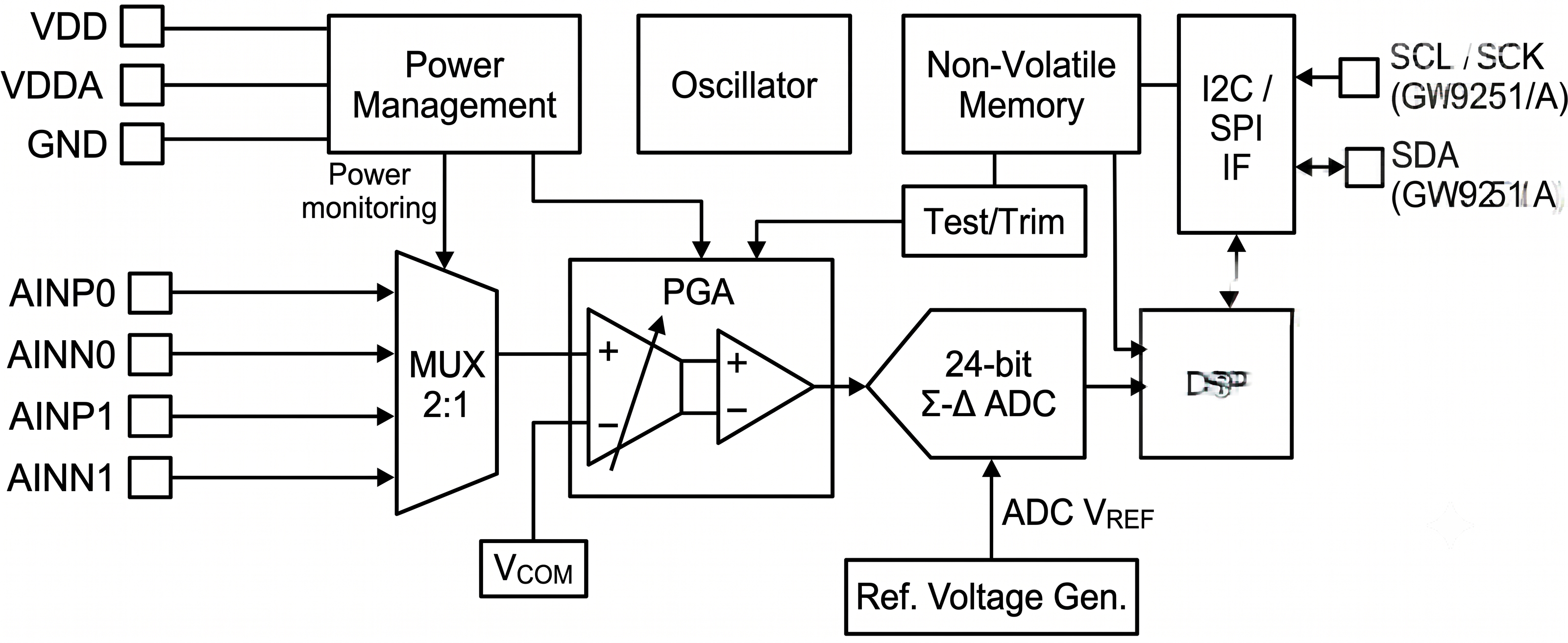

Block Diagram

Datasheet and Guides

[GW9251]
Product Brief
File Download

Support

For more information about the product, technology, latest version of the document, or your nearest sales office, Please email us

Sample and Buy
